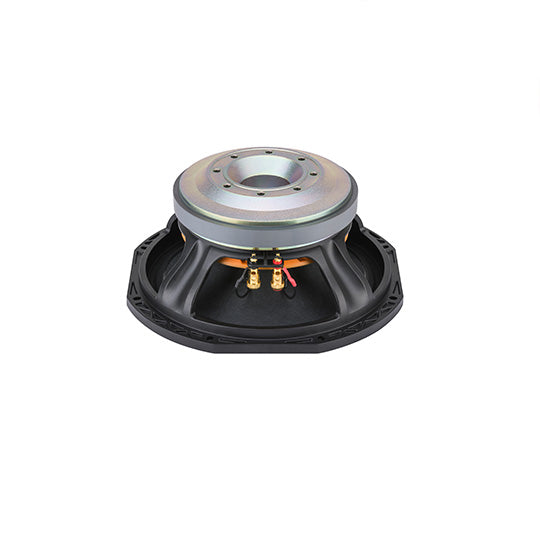

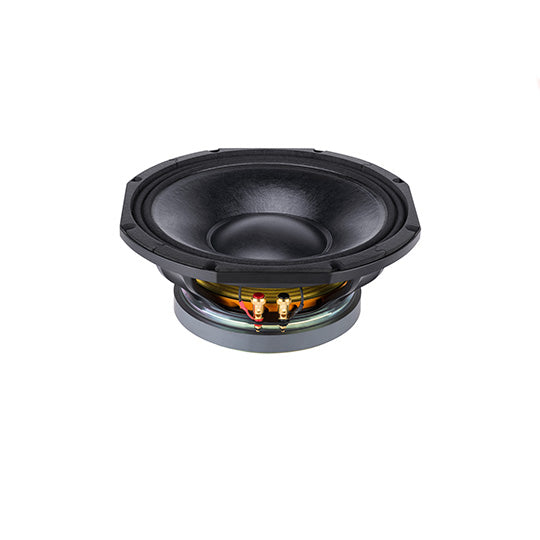

12inch 600W rms Line Array Midbass

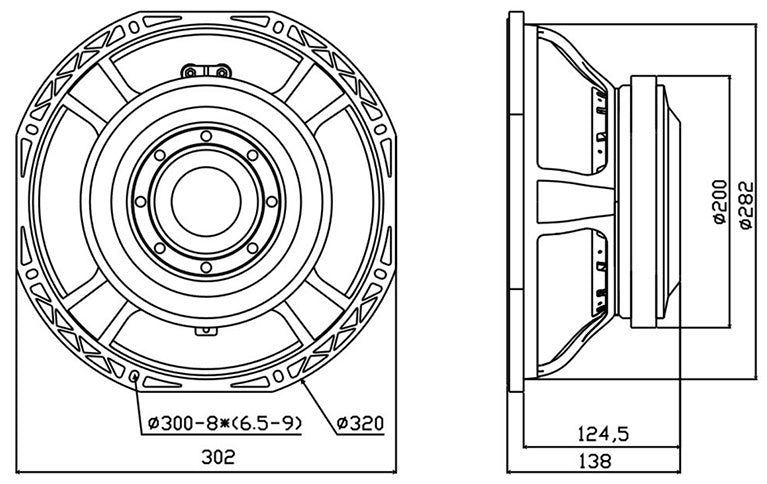

Nominal diameter 320(12) mm (in.)
Nominal impedance 8 Ω
Minimum impedance 7.4 Ω
Program power (1) 1200 W
AES Power rating(2) 600 W
Sensitivity (3) 96.2 dB
Frequency range 53~3000 Hz
Voice coil diameter 100(4) mm (in.)
Chassis material Aluminium
Magnet material Ferrite
Magnet dimensions (ODxIDxh) 200X110X20 mm
Coil material ALW
Former material Glass Fiber
Xmax(4) 6.5 mm
Xmech(5) 12 mm
Gap height 10 mm
Voice coil Winding height 18 mm

DC resistance(Re) 5.8 Ω
Resonance frequency(Fs) 53.1 Hz
Moving mass(Mms) 61 g
Compliance(Cms) 0.14 mm/N
Force factor(BL) 17.8 N/A
Mechanical Q-factor(Qms) 6.2
Electrical Q-factor(Qes) 0.41
Total Q-factor(Qts) 0.39
Equivalent air volume(Vas) 64.8 I
Voice coil Inductance(Le) 5.2 mH
Diaphragm area(Sd) 572 cm2
Reference efficiency(Eta O) 2.6 %

Net weight 7.8 Kg
Multipack size (1) (W x D x H) 320x320x168 mm
Multipack weight 8.4 Kg
