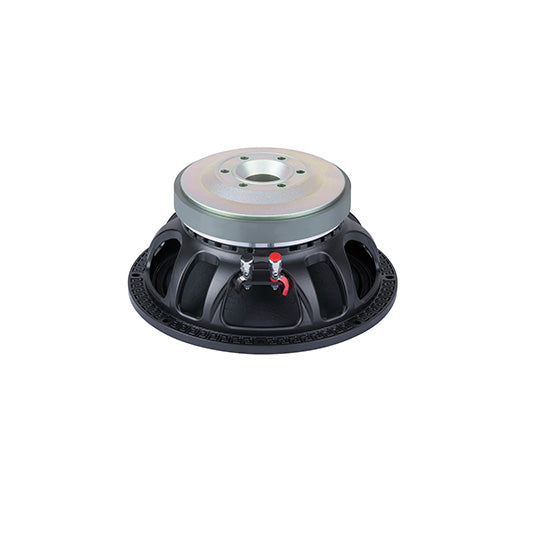

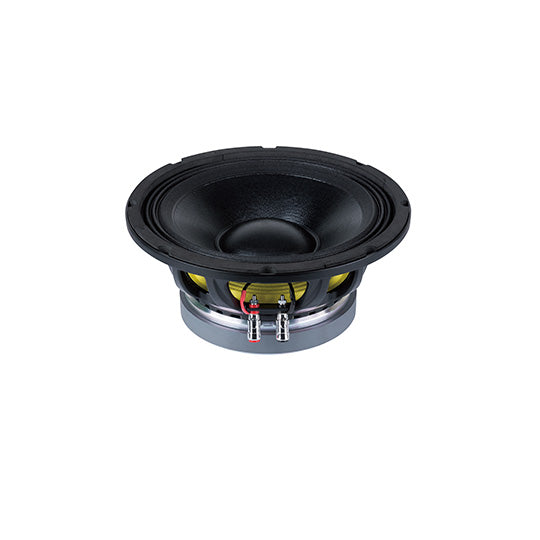

10inch 350W rms Midbass

Nominal diameter 262(10) mm (in.)
Nominal impedance 8 Ω
Minimum impedance 6.8 Ω
Program power (1) 700 W
AES Power rating(2) 350 W
Sensitivity (3) 96 dB
Frequency range 65 ~ 4000 Hz
Voice coil diameter 65(2.5) mm (in.)
Chassis material Aluminium
Magnet material Ferrite

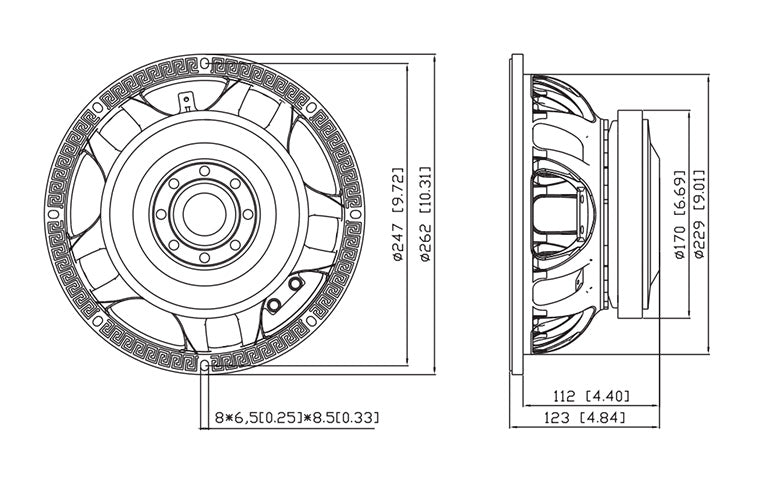

Magnet dimensions (ODxIDxh) 170x85x20 mm
Coil material CCAW
Former material Glass Fiber
Xmax(4) 6 mm
Xmech(5) 10 mm
Gap height 8 mm
Voice coil Winding height 16 mm

DC resistance(Re) 5.2 Ω
Resonance frequency(Fs) 65 Hz
Moving mass(Mms) 36 g
Compliance(Cms) 0.14 mm/N
Force factor(BL) 16.50 N/A
Mechanical Q-factor(Qms) 4.2
Electrical Q-factor(Qes) 0.36
Total Q-factor(Qts) 0.33
Equivalent air volume(Vas) 31 I
Voice coil Inductance(Le) 0.80 mH
Diaphragm area(Sd) 347 cm2
Reference efficiency(Eta O) 2.75 %

Net weight 4.9 Kg
Multipack size (1) (W x D x H) 280 x 280 x 154 mm
Multipack weight 5.4 Kg
