Lion Audio

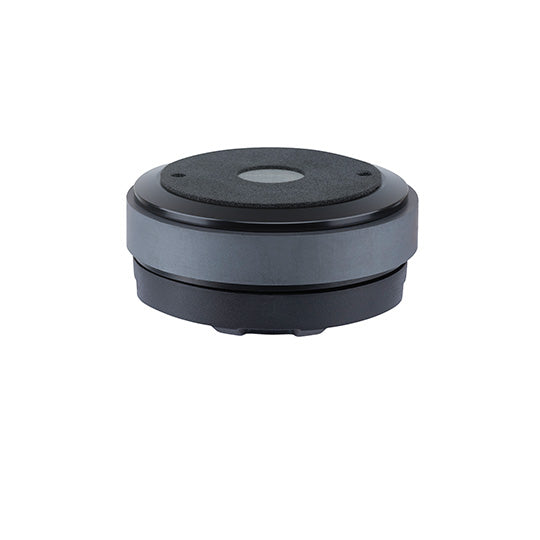

1.75inch 60W rms Compression Driver

1.75inch 60W rms Compression Driver

$83.00 AUD
$83.00 AUD
Sale Sold out
Shipping calculated at checkout.
  • 1.75 INCH ALUMINIUM VOICE COIL
  •  108 dB/SPL SENSITIVITY
  •  120 WATT PROGRAM POWER HANDING
  •  FEM OPTIMIZED MOTOR ,PHASEPLUG AND DIAPHRAGM
  •  1200-18000 Hz FREQUENCY RANGE
  •  HIGH TEMPUTEMBER POLYMERIC DIAPHRAGM
  •  VOICE COIL COPPER DEMODULATION RING

DOWNLOAD PRODUCT SPECIFICATIONS PDF

View full details

Additional Information

General Specifications

Throat diameter 25.4(1) mm (in.)
Nominal impedance 8 Ω
Minimum impedance 6 Ω
Program power (1) 120 W
AES Power rating(2) 60 W
Sensitivity (3) 108 dB
Frequency range 1200 ~ 18000 Hz
Voice coil diameter 44(1.75) mm (in.)
Magnet material Ferrite

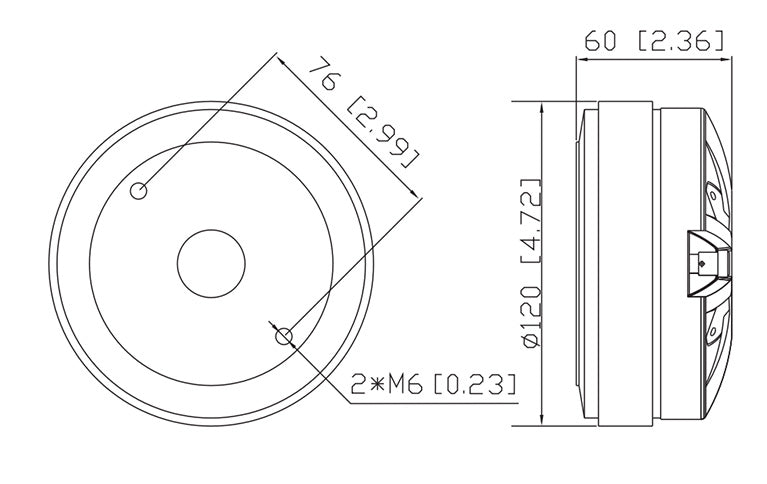

Magnet dimensions (ODxIDxh) 120 mm
Coil material ALR
Former material Kapton
Diaphragm material Polymer Materials
Voice coil Inductance 0.08
Flux density 1.4 T
Recommended crossover (4) 1500 Hz

Small Signal Parameters

Shipping Information

Net weight 2 Kg
Multipack size (12) (W x D x H) 300 x 290 x 155 mm
Multipack weight 25.2(12PCS) Kg
